Scooter Dry Clutch Kit Specifications
Our products are stably exported to Brazil, Mexico, Argentina, Chile, Colombia, Peru and other countries, winning high trust from local distributors and customers.
Category：Motorcycle Modification Parts
OEM/ODM
Professional Team
Critically Acclaimed
Increase Sales Volume
Description
Application: GY6 50/125/150cc, 139QMB/QMA engines, Yamaha ZY100, Honda DIO, Kymco Heroism and most Chinese 4-stroke scooters.

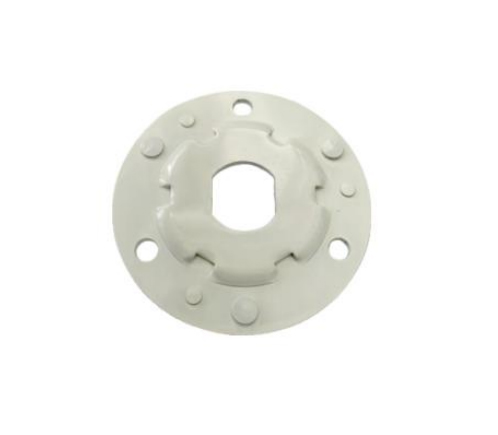

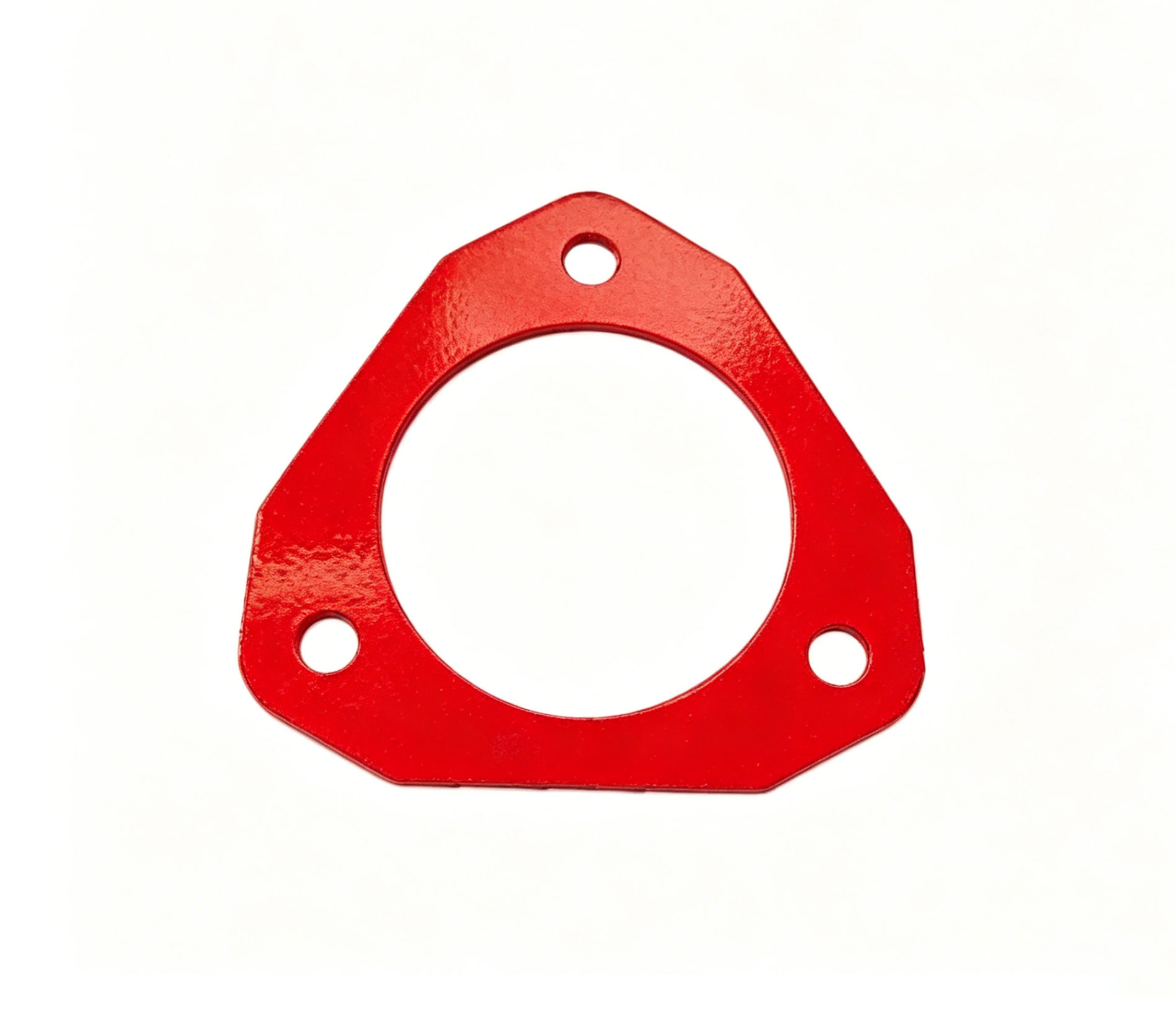

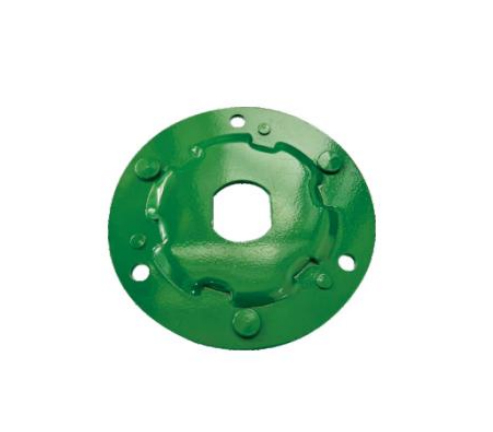

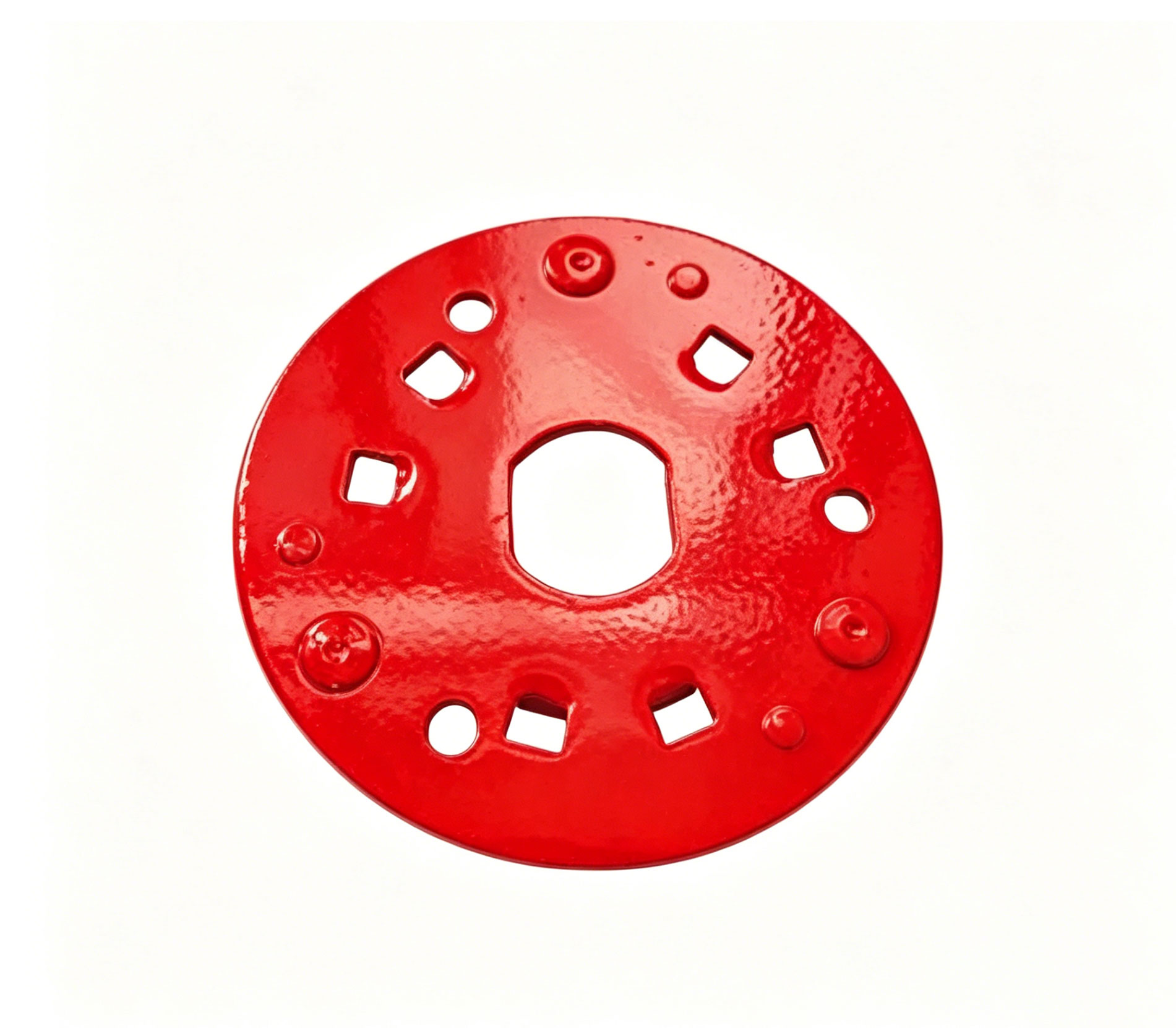

Clutch Pressure Plate Set
Outer Diameter: 90-100mm (GY6 standard size)
Center Square Bore: 14/16/18mm (optional for different drive shafts)
Mounting Holes: 6-8 positions, for clutch shoe alignment
Finish: High-temperature powder coating, anti-rust
Color Code: Red/White/Green for different preload levels (OEM/Racing/Track)
Spring Set

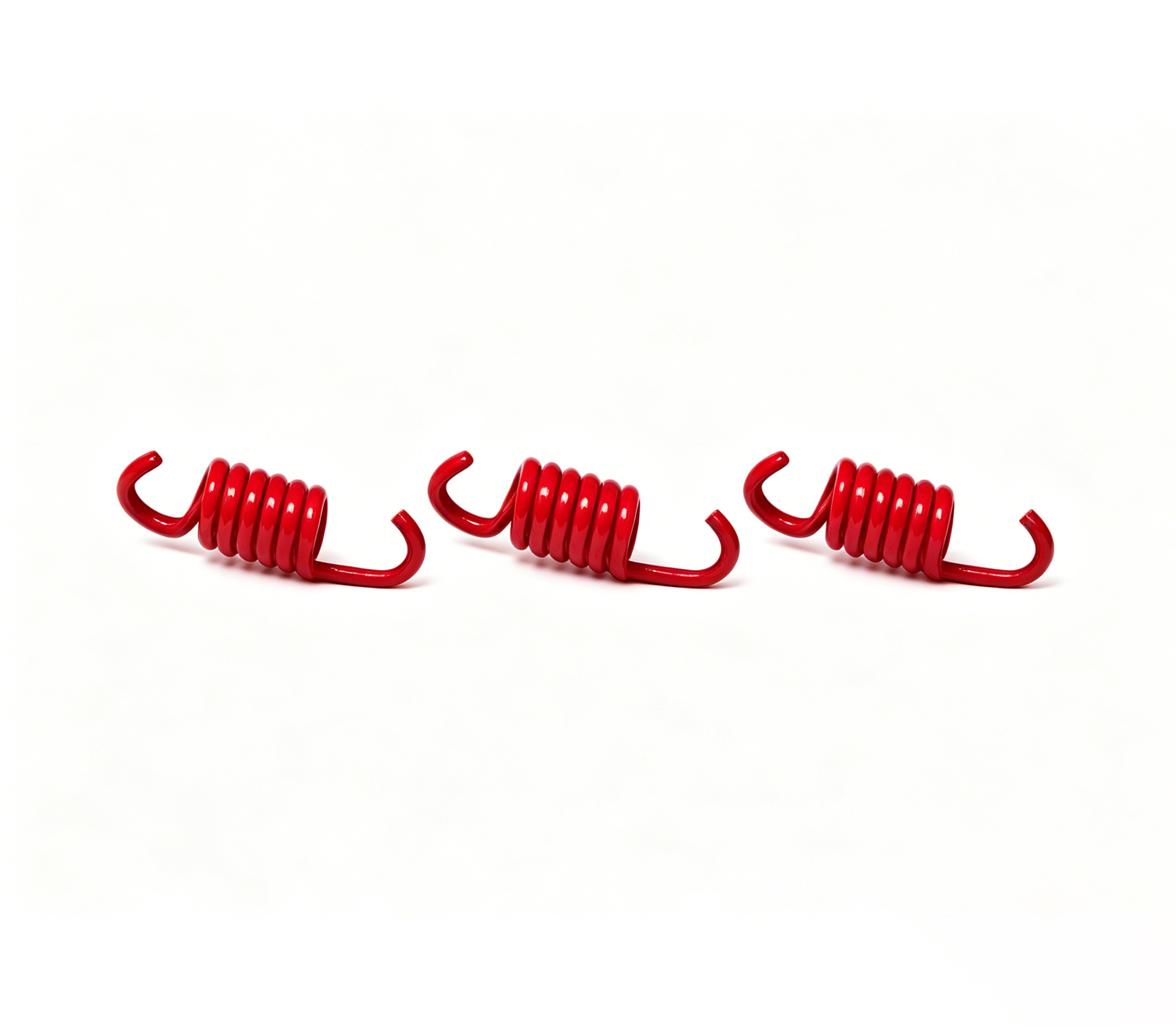

Clutch Return Springs (3pcs):
Material: High-carbon manganese steel
Tension: 1000N/1500N/2000N (optional)
Free Length: 20-25mm, Stroke: 8-10mm

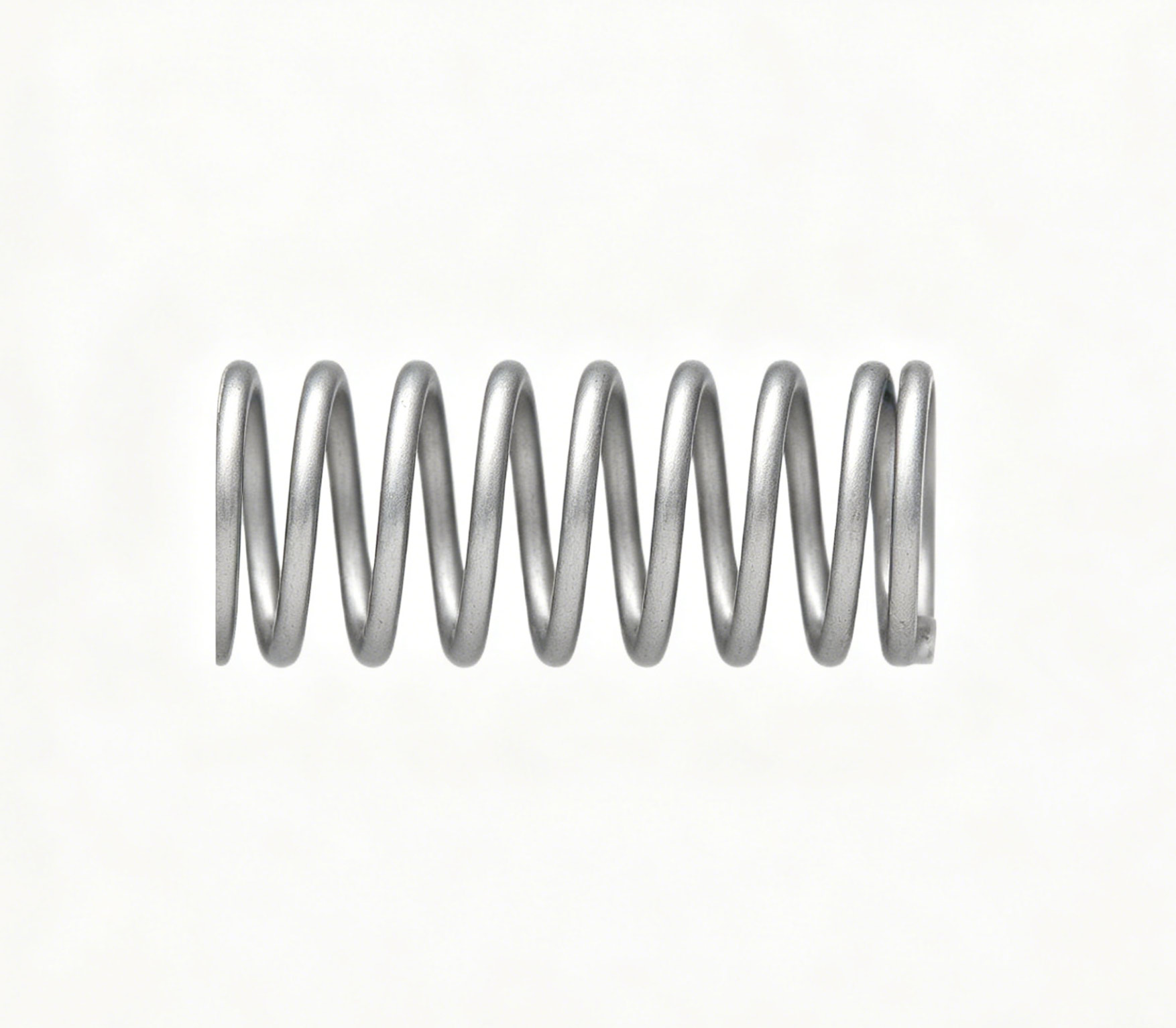

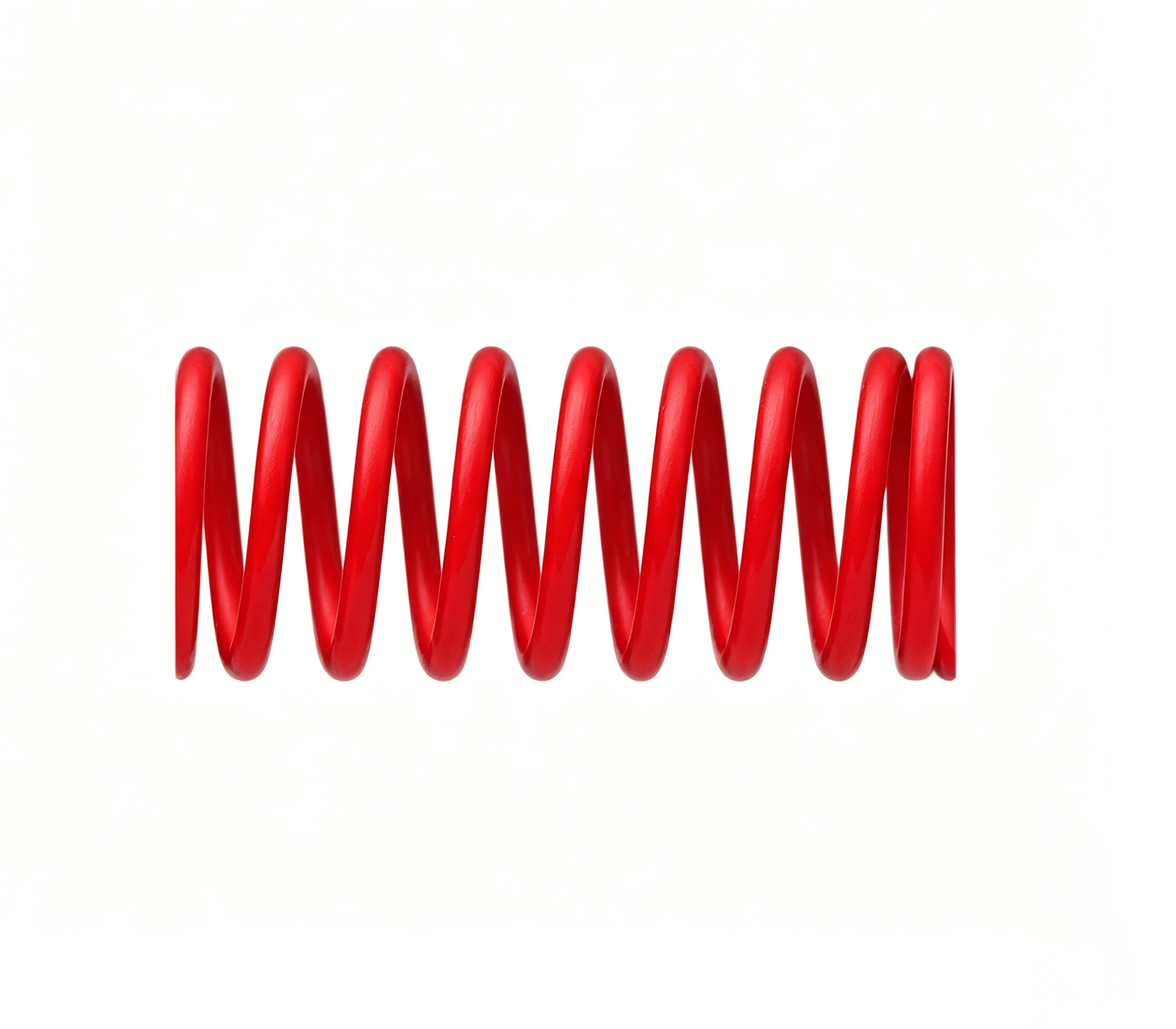

Clutch Center Spring (3 types):
Material: Chrome-vanadium steel
Wire Diameter: 2.0-2.5mm, Coils: 7-8
Preload RPM: 1000/1500/2000rpm (different engagement speeds)
Fit Shaft Diameter: 14/16/18mm
